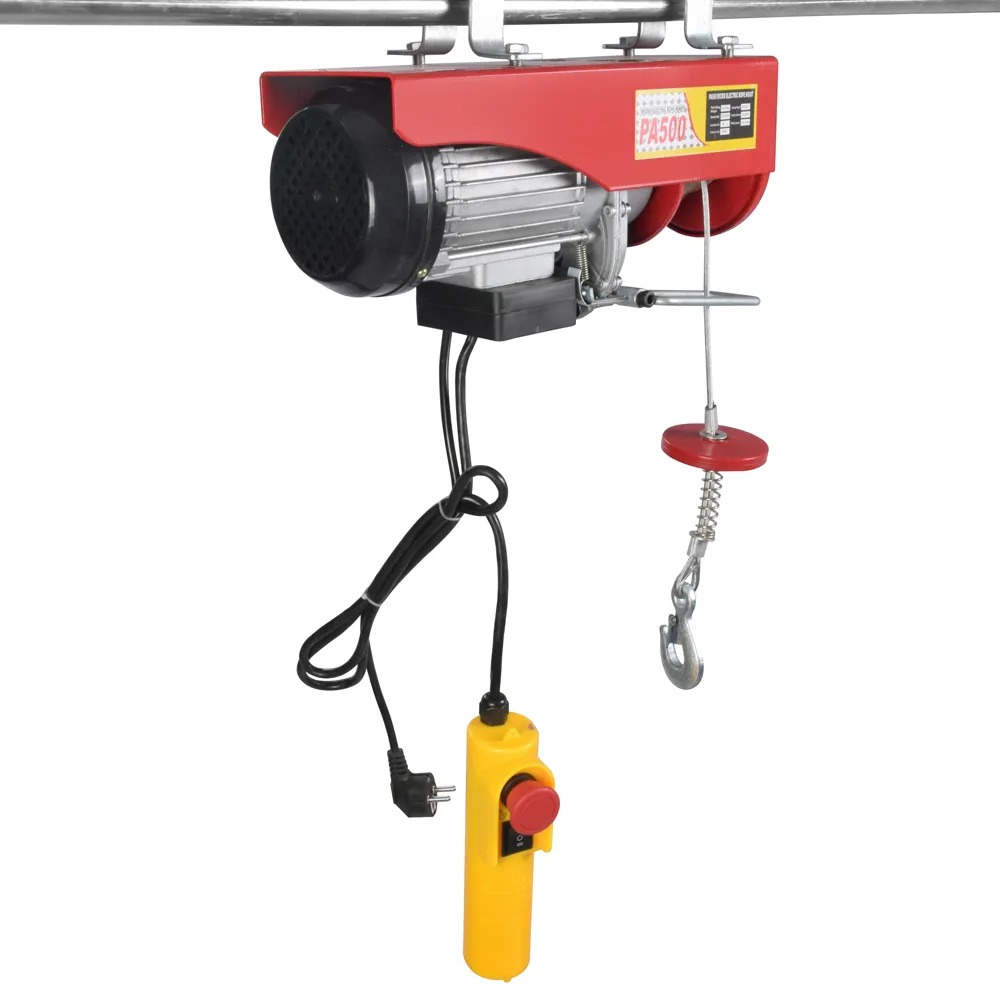

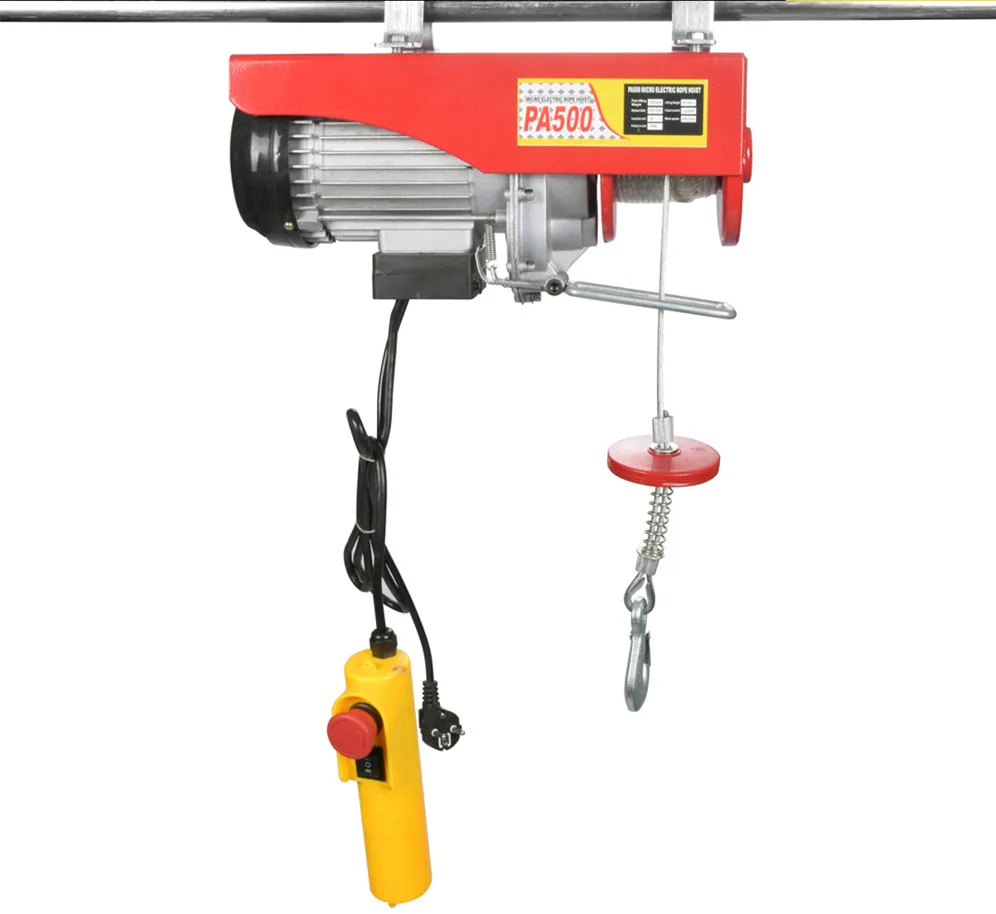

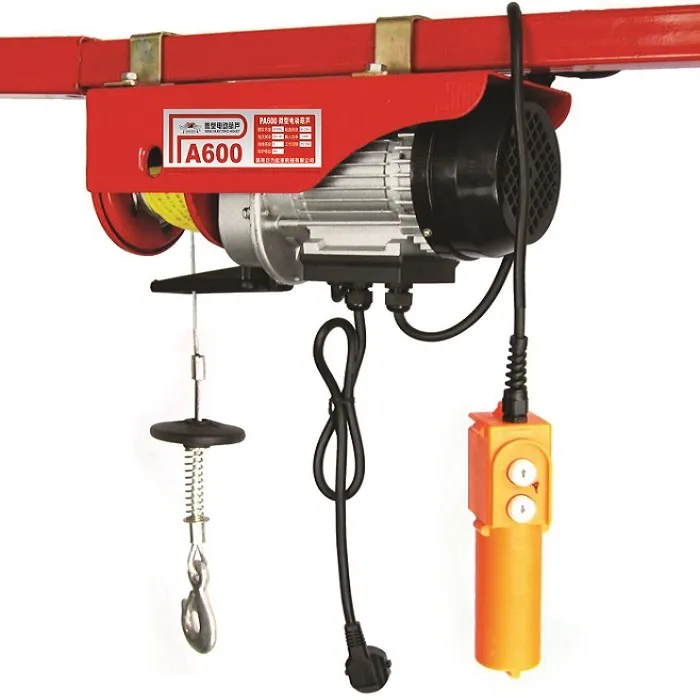

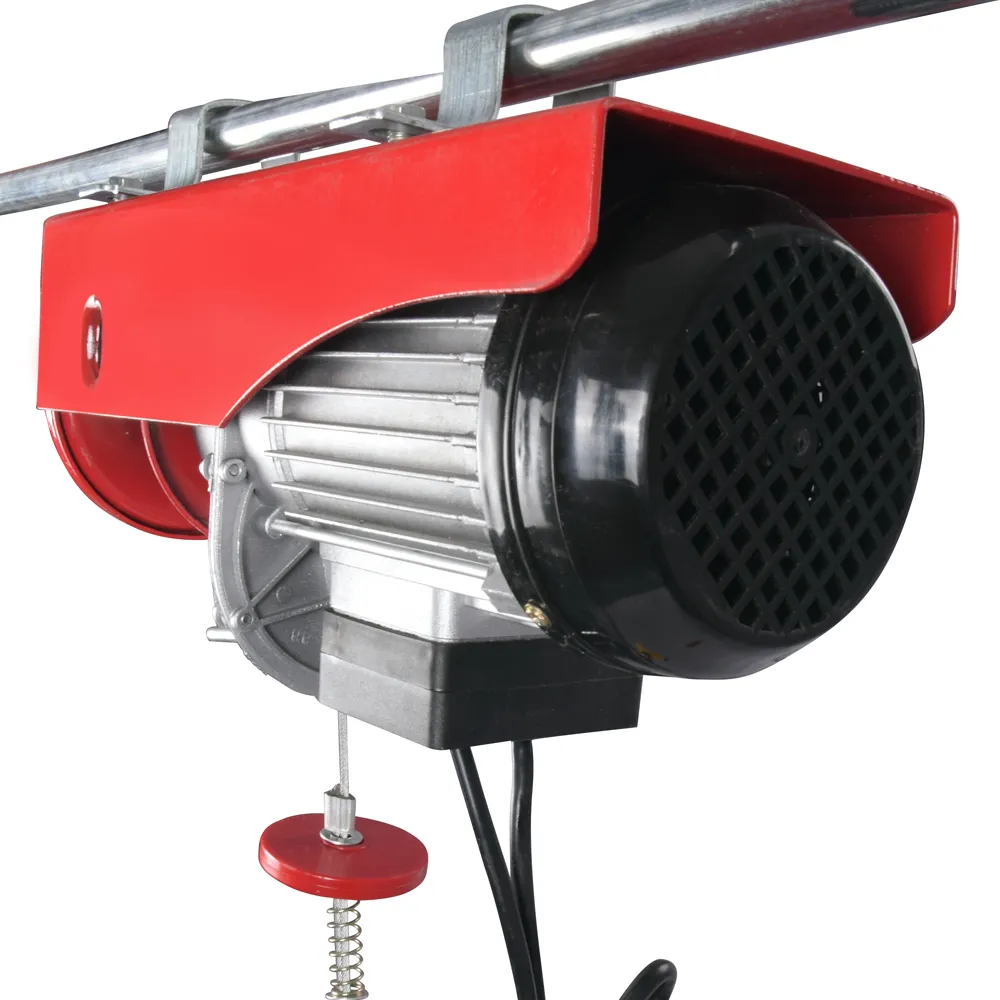

mini electric hoist

Features

● Miniature electric hoist design clever, easy to use
● when the weight limit is met up to stop automatically when ascension
● if rope hoist motor, reverse ascension will stop working automatically
● 220V power source operation
● for plug-in cord, easy to use

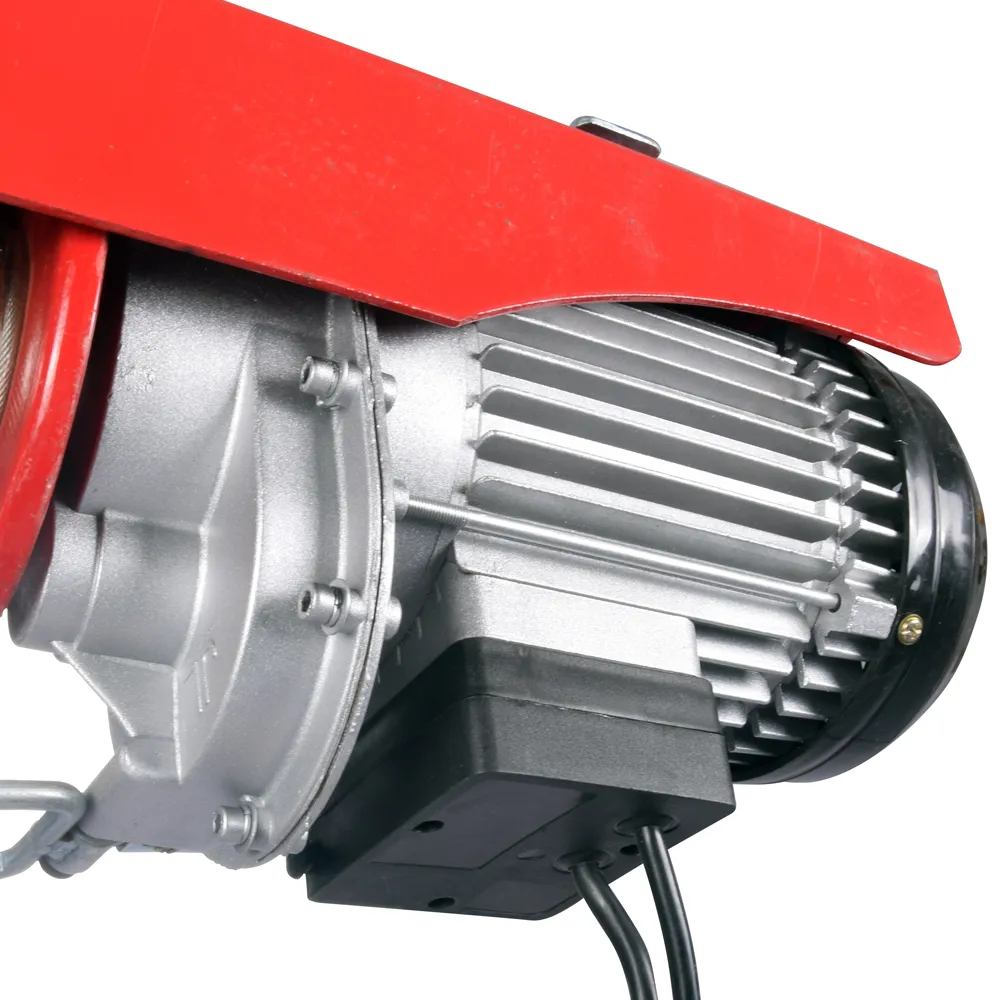

● 100% cooper wire.

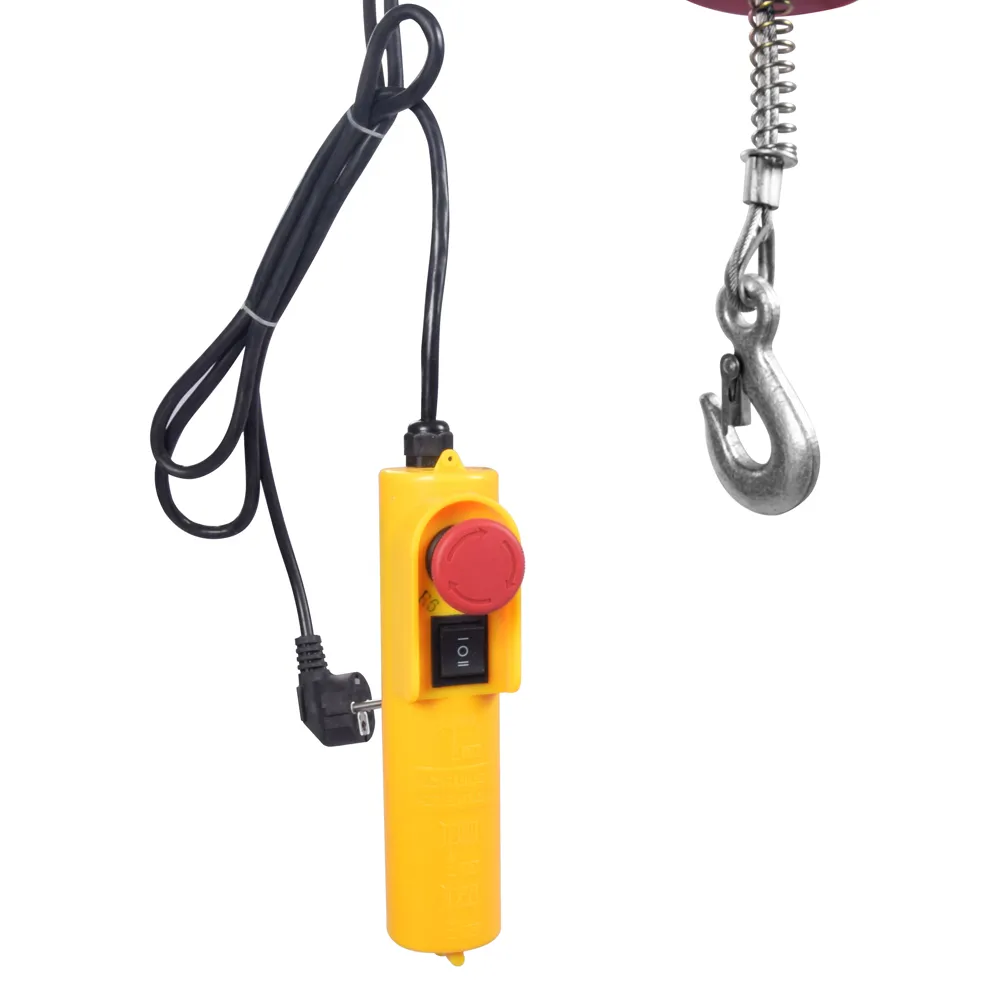

● Adopt urgent stop switch and reinforced breaking switch position limit. protection class up to Ip54.With thermal prevention device
● Reasonable design & high quality with good performance.
● Group perchase, large-scale produce, reasonable price.
● Shipping to anywhere in the world.

Specifications

Item No	Specification	Method	Rated	Input	Rated	Lifting	Lifting	Quantity/	Packing	G.W/N.W
		ofuse	volt(V)	power	lifting	speed	height	CTN	dimension	(kg)
				(w)	weight(kg)	(m/min)	(m)	(PCS)	(cm)
DR-590100100	PA200	Single-hook	220V/50Hz	480	100	10	10/12/20/30	2	463616	24/22
		Double-hook			200	5	5/6/10/15
DR-590100101	PA250	Single-hook	220V/50Hz	540	125	10	10/12/20/30	2	463616	25/23
		Double-hook			250	5	5/6/10/15
DR-590100102	PA300	Single-hook	220V/50Hz	600	150	10	10/12/20/30	2	463616	26/24
		Double-hook			300	5	5/6/10/15
DR-590100103	PA400	Single-hook	220V/50Hz	950	200	10	10/12/20/30	2	524117	35/33
		Double-hook			400	5	5/6/10/15
DR-590100104	PA500	Single-hook	220V/50Hz	1020	250	10	10/12/20/30	2	524117	36/34
		Double-hook			500	5	5/6/10/15
DR-590100105	PA600	Single-hook	220V/50Hz	1200	300	10	10/12/20/30	2	524117	37/35
		Double-hook			600	5	5/6/10/15
DR-590100106	PA800	Single-hook	220V/50Hz	1300	400	10	10/12/20/30	2	524417	39/37
		Double-hook			800	5	5/6/10/15
DR-590100107	PA1000	Single-hook	220V/50Hz	1600	500	10	10/12/20/30	1	5224.531.5	32/31
		Double-hook			990	5	5/6/10/15
DR-590100108	PA700	Single-hook	220V/50Hz	1250	350	10	10/12/20/30	2	524417	38/36
		Double-hook			700	5	5/6/10/15
DR-590100109	PA1200	Single-hook	220V/50Hz	1800	600	10	10/12/20/30	1	5224.531.5	34/33
		Double-hook			1200	5	5/6/10/15
