Semi-electric Stacker
ShareFacebookTwitterLinkedinPinterest
  • Semi-electric Stacker

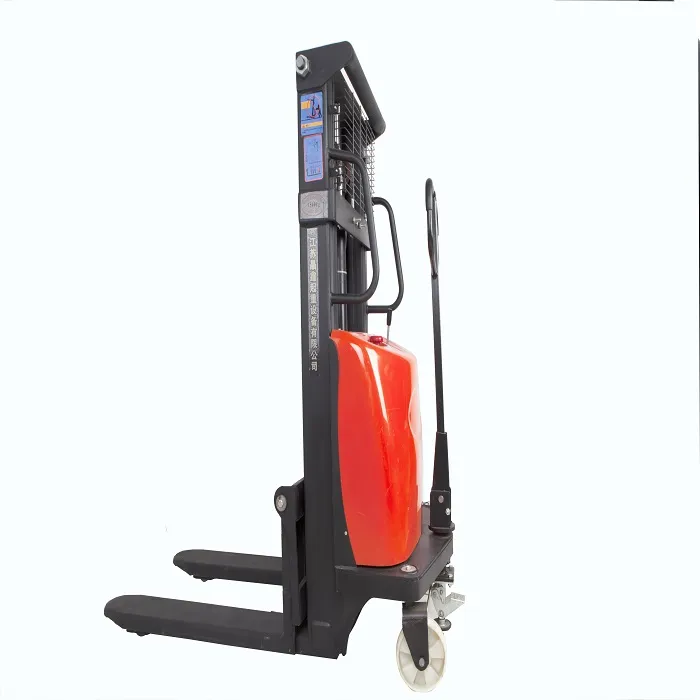

dr-5903002semi-electric stacking truck
Features
Specifications
Project Unit Specifications
Rated load kg 1000/2000
Hoisting height mm 1600/2000/2500/3000/3500
Minimum height of fork mm 80
The goods fork length mm 1000
Fork width maximum mm 780
Width of single fork mm 120/140
Fork leg length mm 800
Outside fork legs wide mm single:640   double:680
Width of single leg mm 80
Minimum turning radius mm 1200
The whole machine width mm 800
The whole machine length mm 1350
The front wheel mm 70*80
The rear wheel diameter mm 150-180
Lifting motor v/kw 12/1.2
Battery v/Ah 12/135
The charger v/A 12-24/40-50
