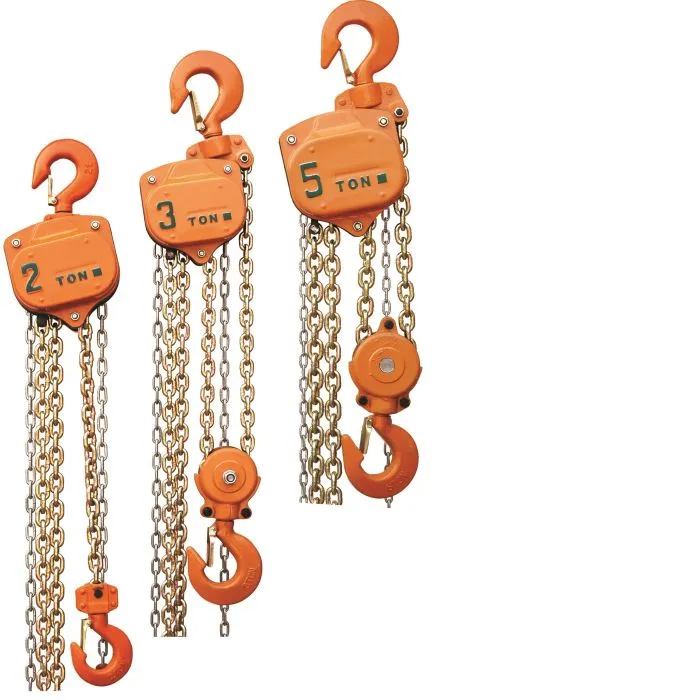

dr-5902001chain block
Features
Specifications
| Item NO. | DR-590200100 | DR-590200101 | DR-590200102 | DR-590200103 | DR-590200104 | DR-590200105 | DR-590200106 |
| Capacity (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Standard lifting height(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 |
| Test load (KN) | 6.13 | 12.25 | 19.6 | 75 | 112.5 | 75 | 112.5 |
| Heardroom(drawn close up) Hmin | 285 | 315 | 340 | 380 | 475 | 600 | 700 |
| Chain pull to lift full load N | 25 | 33 | 34 | 34 | 35 | 39 | 41 |
| No.of load chain fall lines | 1 | 1 | 1 | 10 | 10 | 10 | 10 |
| Diameter of load chain(mm) | 1.6 | 7.1 | 7.1 | 8 | 7.1 | 9 | 9 |
| Net weight (kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 |
